Electric Vehicle Probe Kit TEV200

Triplett TEV200 Electric Vehicle Probe Kit

The Triplett TEV200 is a versatile EV probe kit designed for integration with your Digital Multimeter (DMM), Clamp Meter, or Multifunction Tester (MFT). It enables technicians to perform a wide range of essential electrical measurements directly at EVSE charging points.

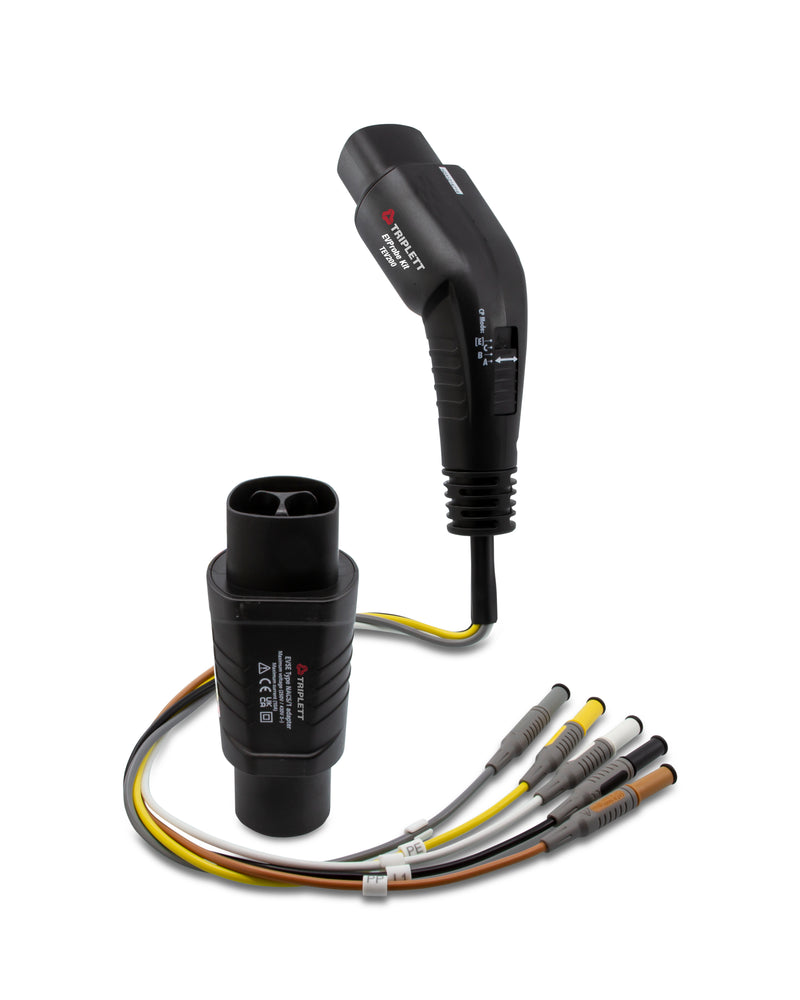

With simple banana plug connections between the EVSE Type-2 connector and your test instrument, all charging connector wires (L1, L2, L3, N, PE, CP, PP) are accessible for accurate diagnostics. Built-in Control Pilot (CP) simulation allows you to replicate different vehicle states, while CP signal output terminals support waveform and amplitude testing via oscilloscope. An integrated CP Error “E” function simulates short-circuit conditions between CP and PE, ensuring comprehensive EVSE testing.

Key Features

Plugs directly into DMM, Clamp Meter, or MFT

Standard banana plug connection between EVSE (Type-2 connector) and measurement device

Access to all charging connector wires: L1, L2, L3, N, PE, CP, PP

Perform typical measurements: voltage, frequency, phase indication, phase sequence, RCD tests, insulation resistance, low ohm, line & loop impedance (device dependent)

Built-in Control Pilot (CP) State simulation with selectable resistances

CP signal output terminals for oscilloscope connection (waveform & amplitude checks)

CP Error “E” function simulates CP-PE short circuit

Complies with EMC Directive (2014/30/EU), Low Voltage Directive (2014/35/EU), EN61010-1

Includes IEC62196-2 Type 1 female-to-male adaptor/converter and pouch case

Applications

EV charger installation and commissioning

Comprehensive EVSE diagnostics and testing

Electrical safety and compliance verification

Oscilloscope waveform analysis of CP signals

Field maintenance by EV service technicians
