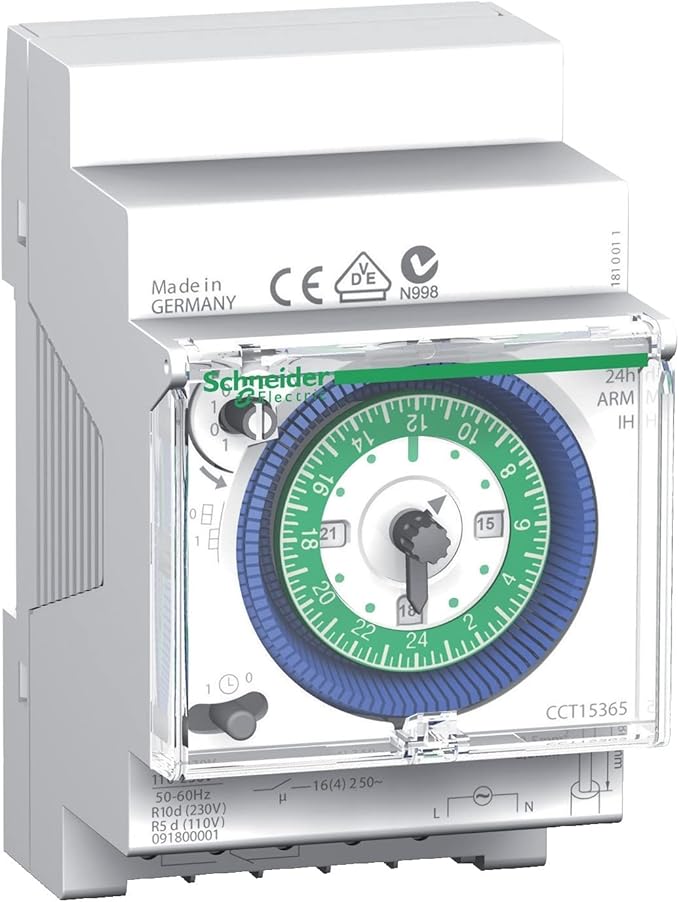

The Schneider Electric CCT15365 (Acti9 IH) is a 24-hour mechanical time switch designed for precise daily control of lighting, heating, and other electrical loads.
Compact and robust, it allows up to 48 ON/OFF operations per day, making it ideal for industrial, commercial, and residential energy management applications.
Equipped with a manual override and 150-hour memory backup, the Acti9 IH continues to keep time and program settings even during power interruptions, ensuring consistent and reliable operation.
24-Hour Programmable Cycle — Up to 48 ON / 48 OFF switchings per day.
1 Channel Output — Controls one circuit independently.
Manual Time Changeover — Quick override without altering settings.
Wide Load Compatibility — Works with LED, halogen, and fluorescent lighting.
Backup Memory (150 h) — Retains programs during power loss.
DIN-Rail Mount (6 modules) — Compact and easy to install.
Energy-Efficient Operation — Reduces manual switching and power waste.
| Specification | Details |
|---|---|
| Range | Acti9 |
| Model / Reference | CCT15365 |
| Product Type | Mechanical Time Switch |
| Number of Channels | 1 |
| Cycle Duration | 24 hours |
| Maximum Switching | 48 ON / 48 OFF |
| Minimum Interval | 15 minutes |
| Mounting | DIN-rail (6 × 9 mm pitches) |
| Rated Voltage | 110 – 230 V AC, 50/60 Hz |
| Rated Impulse Withstand Voltage | 4 kV |
| Switching Current | 16 A @ 250 V AC (pf = 1) / 4 A @ 250 V AC (pf = 0.6) |
| Power Consumption | 0.5 W |
| Battery Life | 6 years |
| Backup Memory | 150 hours (230 V AC) |
| Load Compatibility | 230 V halogen 1000 W / incandescent 1100 W / fluorescent 600 VA / LED < 2 W 20 W / LED > 2 W 180 W |
| Operating Temperature | −20 °C to +55 °C |
| Protection Rating | IP20 (EN 60529) |
| Housing Color | White (RAL 9003) |
| Connection Type | Screwless terminals (2 × 0.5 – 2.5 mm²) |
| Dimensions (W × H × D) | 54 × 90 × 66 mm |
| Weight | 0.198 kg |
| Standards | EN 60730-1 |
Lighting automation in offices, malls, and public buildings
HVAC and ventilation systems
Signage, billboards, and shopfront lighting
Industrial machinery and pumps
Building energy management systems
1 × Schneider Electric Acti9 IH CCT15365 Time Switch
Installation manual
