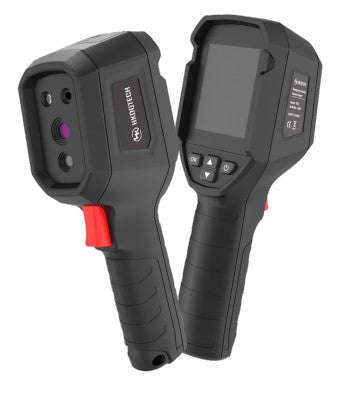

D10 Emergency Infrared Thermal Imager HKDQTECH

The D10 Emergency Infrared Thermal Imager is a compact, rugged, and high-performance handheld thermal camera designed for fast temperature measurement and emergency inspection tasks. With its lightweight 330g body and 2-meter drop resistance, the D10 is ideal for field technicians, safety inspectors, and maintenance professionals who need reliable, on-the-go thermal diagnostics.

Featuring a 160×120 VOX uncooled infrared detector, the D10 delivers clear and accurate thermal images across a wide temperature range of –20°C to 550°C with an accuracy of ±2°C or ±2% of reading. The built-in 2.4-inch TFT display shows vivid thermal palettes including iron red, rainbow, white hot, and lava modes.

The D10 supports center point measurement, high/low temperature tracking, and adjustable sound and light alarms for over-temperature detection. Images can be stored internally (28GB) in JPG format and analyzed using the included PC analysis software via Type-C USB.

With a 2600mAh rechargeable lithium battery, the D10 provides up to 6 hours of continuous use, making it perfect for daily industrial, electrical, and emergency applications.

Key Features

Uncooled FPA VOX detector, 160×120 resolution

Temperature range: –20°C to 550°C

Accuracy: ±2°C or ±2% of reading

Thermal sensitivity <50mK @25°C

2.4” TFT display (320×240 pixels)

7 color palettes (Iron Red, Rainbow, White Hot, etc.)

High/Low temperature audible and visual alarm

2-meter drop resistance, IP54 rated

Built-in LED flashlight and laser pointer

Internal 28GB image storage (JPG format)

Up to 6 hours of battery life

Tripod mountable and PC analysis software included

Typical Applications

Electrical inspection and fault detection

Preventive maintenance and thermal diagnostics

Building and HVAC inspection

Emergency services and safety inspection

What’s Included

D10 Thermal Imager

USB Type-C cable

Rechargeable lithium battery

PC analysis software

User manual
