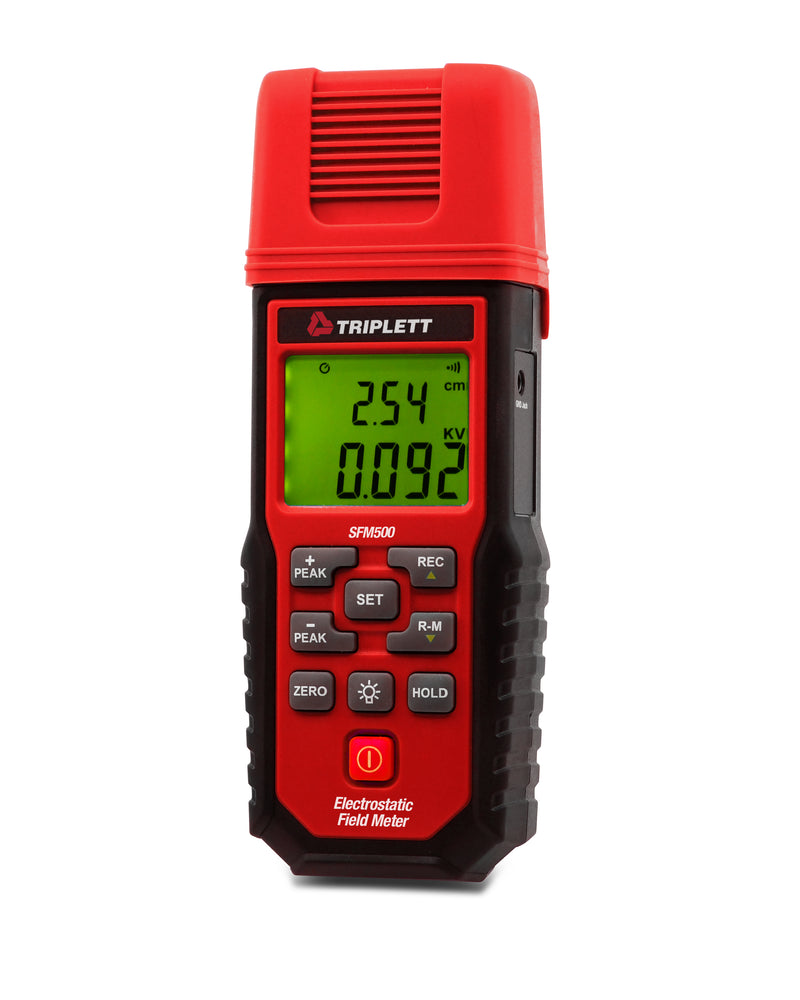

Triplett SFM500 Electrostatic Field Meter

Triplett SFM500 Electrostatic Field Meter – Non-Contact Electrostatic Charge Measurement

The Triplett SFM500 Electrostatic Field Meter is a precision instrument designed for the non-contact measurement of electrostatic charges on surfaces, bodies, or objects. With a wide measuring range of –19.000kV to +19.000kV at a distance of 1 inch (2.54 cm), it provides reliable and accurate results for ESD-sensitive environments.

Readings are displayed on a 4.5-digit (19,999 count) backlit LCD, with advanced features including audible high/low alarms, data hold, min/max capture, and a zero function to clear residual charges. The meter can also store and recall up to 99 readings manually, making it ideal for fieldwork and reporting.

Additional convenience features include a tripod mount for hands-free operation, auto power-off with disable option, low battery indicator, and durable design. The SFM500 comes complete with a protective sensor cover, ground wire with alligator clip, 9V battery, and carrying case for professional use.

Key Features

Measures static voltage on charged bodies and objects without contact

Measuring range: –19.000kV to +19.000kV

Measuring distance: 1" (2.54 cm)

Sampling rate: 500 ms

Data hold, min/max capture, and zero reset functions

Stores and recalls up to 99 readings

Programmable audible high/low alarms

Backlit 4.5-digit (19,999 count) LCD display

Tripod mount for hands-free use

Includes sensor cover, ground wire, battery, and carrying case

Applications

ESD control in electronics manufacturing and repair

Electrostatic charge measurement on materials, packaging, and surfaces

Quality control and compliance testing

Laboratories and R&D requiring precise electrostatic measurements

Industrial environments where static electricity poses a risk
