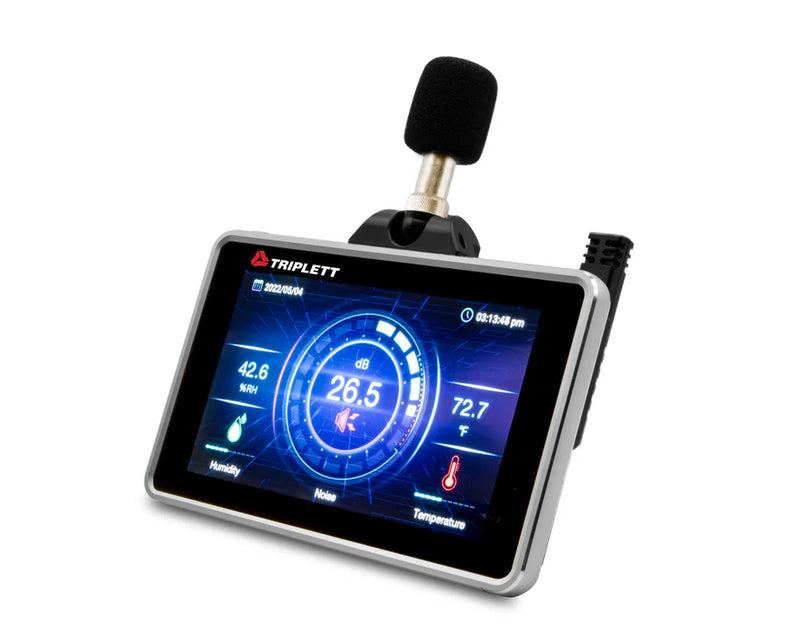

Temperature / Humidity / Sound Datalogger || Triplett EMDL700

Smart Multi-Parameter Environmental Logger with 7” Touch Display

The Triplett EMDL700 is an advanced environmental datalogger designed for accurate long-term monitoring of temperature, humidity, and sound levels.
With its 7-inch high-resolution color touch screen (1024 × 600), this instrument delivers real-time graphical curves, digital readings, and intuitive operation for laboratories, offices, and industrial environments.

Equipped with High / Low audible and visual alarms, the EMDL700 ensures immediate awareness when readings exceed set thresholds. It can record up to 20,000 data points, featuring 1 second to 24 hour adjustable sampling intervals, a USB interface, and direct CSV data export for easy analysis.

Key Features

Multi-Parameter Measurement – Simultaneously logs temperature, relative humidity, and sound.

7" Color Touch Display (1024 × 600) – Shows real-time graphs, zoom, and digital readouts.

Adjustable Sampling Rate – Set from 1 s to 24 h with manual start/stop and progress bar for memory usage.

Audible & Visual Alarms – High/Low limits for temperature and humidity (High alarm only for sound).

Sound Accuracy ±1.4 dB – Complies with IEC 61672-1 Class 2 standard.

20,000 Data Points Storage – Export data via USB in CSV format for PC analysis.

Additional Functions – Max/Min recording, date & time stamp, °C/°F selectable.

Rechargeable Lithium Battery – Includes battery and AC adapter for continuous operation.

Complete Kit Included – Sensor probe with 1 m cable, windscreen, USB cable, battery, adapter, and mounting bracket.

1-Year Warranty – Backed by Triplett quality and reliability.

Applications

HVAC & Building Monitoring

Laboratories & Clean Rooms

Environmental Testing

Warehouses & Storage Facilities

Noise Level Monitoring & Compliance
