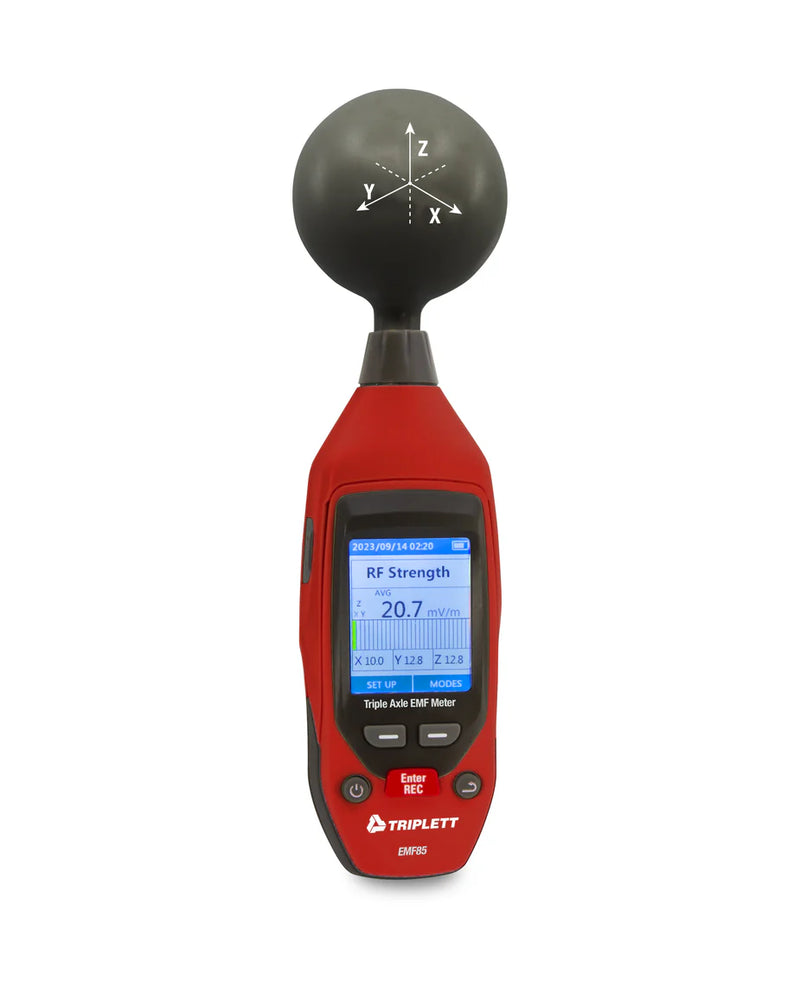

Triplett EMF85 8GHz Triple Axis EMF Meter

Triplett EMF85 8GHz Triple Axis EMF Meter — Wide-Band Electromagnetic Radiation Analyzer

The Triplett EMF85 is a high-frequency electromagnetic field (EMF) meter designed for wide-band monitoring from 50MHz to 8GHz. Equipped with a 3-axis (XYZ) non-directional sensor, it provides accurate radiation measurements from sources such as cellular base stations, Wi-Fi networks, RF transmitters, and microwave ovens.

Ideal for both professional and environmental EMF assessments, the EMF85 displays results in multiple units — µW/m², mW/m², W/m², µW/cm², mW/cm², mV/m, and V/m — offering full flexibility for technical analysis. The large color LCD display (with 4 brightness levels) shows Actual, Average, Max, and Max Average readings, while the programmable audible alarm alerts users when thresholds are exceeded.

Built for modern EMF diagnostics, it allows users to store up to 10,000 records, view historical data directly on-screen, or export results to PC in CSV format via USB.

Key Features

Measures high-frequency EMF radiation from 50MHz to 8GHz

Triple-axis (XYZ) non-directional probe for accurate readings

Displays Actual, Average, Max, and Max Average values

Multiple units of measurement: µW/m², mW/m², W/m², µW/cm², mW/cm², mV/m, V/m

Color LCD display with 4 adjustable brightness levels

Audible high-limit alarm for safety monitoring

Manual data logging up to 10,000 points with historical playback

USB interface for PC connectivity and data export (CSV)

Includes rechargeable 3.7V Li-ion battery, USB cable, and carrying case

1-year warranty

Applications

Cellular base station and antenna radiation assessment

Wi-Fi network testing and installation

RF transmitter power measurement

Microwave oven radiation leakage detection

Workplace and residential EMF safety evaluation

Electromagnetic wave analysis in labs, telecom, and industry
