Class A Standard Power Quality Measurement and Analysis

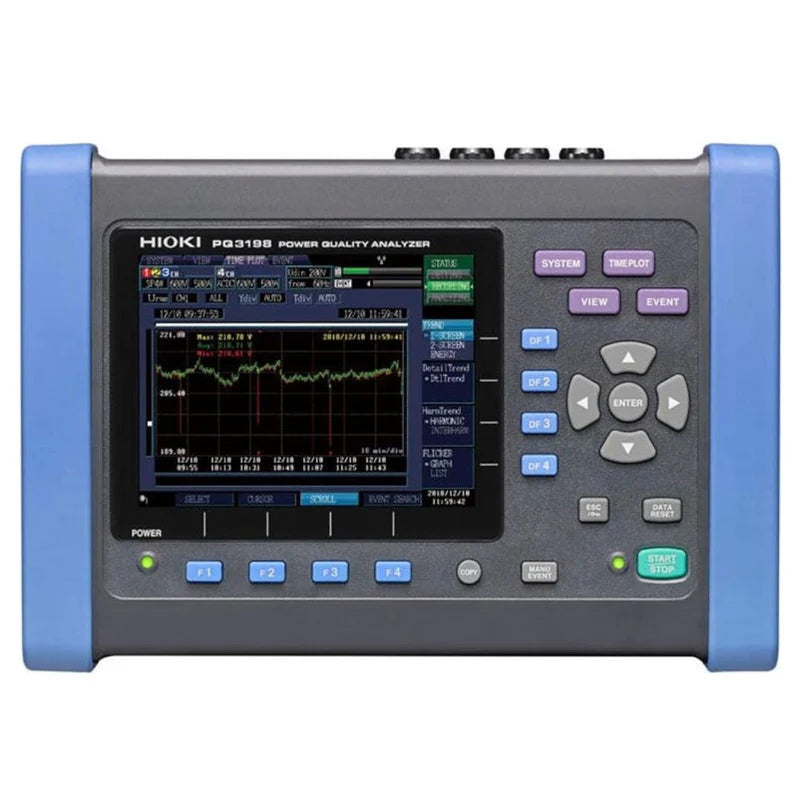

Hioki portable power meters and analyzers are trusted worldwide for their precision, reliability, and ease of use. The PQ3198-94 is a cutting-edge power quality analyzer designed for monitoring, recording, and analyzing anomalies in single-phase to three-phase power systems. It helps identify and investigate the causes of power disturbances such as voltage dips, flicker, harmonics, and transients—making it an indispensable tool for energy management, troubleshooting, and compliance verification.
IEC61000-4-30 Ed.3 Class A Compliance: Verify power problems with internationally recognized precision.
High Voltage & Current Range: Measure up to 6000 V peak transient voltage (to 700 kHz) and 6000 A AC with current sensors powered directly from the PQA.
Advanced Recording: Continuous, high-accuracy, gapless data logging for reliable long-term monitoring.
PQ ONE Software: Quickly generate professional reports with the bundled analysis software.
Inverter Measurement: Simplified measurement of inverters from 40 to 70 Hz fundamental frequency and up to 20 kHz carrier frequency.
Broadband Harmonic Analysis: Capture super harmonic components up to 80 kHz.
Efficiency Testing: Two systems of power measurement and efficiency calculation for channels 1–4.
Optional GPS Synchronization: Synchronize multiple analyzers for large-scale system analysis.
Power quality monitoring in factories, plants, and critical facilities
Investigation of power anomalies (voltage dips, flicker, transients, harmonics)
Compliance testing to IEC Class A standards
Renewable energy and inverter system performance evaluation
Utility and power distribution system analysis
Class A Standard Power Quality Measurement and Analysis
Hioki portable power meters and analyzers are trusted worldwide for their precision, reliability, and ease of use. The PQ3198-94 is a cutting-edge power quality analyzer designed for monitoring, recording, and analyzing anomalies in single-phase to three-phase power systems. It helps identify and investigate the causes of power disturbances such as voltage dips, flicker, harmonics, and transients—making it an indispensable tool for energy management, troubleshooting, and compliance verification.
IEC61000-4-30 Ed.3 Class A Compliance: Verify power problems with internationally recognized precision.
High Voltage & Current Range: Measure up to 6000 V peak transient voltage (to 700 kHz) and 6000 A AC with current sensors powered directly from the PQA.
Advanced Recording: Continuous, high-accuracy, gapless data logging for reliable long-term monitoring.
PQ ONE Software: Quickly generate professional reports with the bundled analysis software.
Inverter Measurement: Simplified measurement of inverters from 40 to 70 Hz fundamental frequency and up to 20 kHz carrier frequency.
Broadband Harmonic Analysis: Capture super harmonic components up to 80 kHz.
Efficiency Testing: Two systems of power measurement and efficiency calculation for channels 1–4.
Optional GPS Synchronization: Synchronize multiple analyzers for large-scale system analysis.
Power quality monitoring in factories, plants, and critical facilities
Investigation of power anomalies (voltage dips, flicker, transients, harmonics)
Compliance testing to IEC Class A standards
Renewable energy and inverter system performance evaluation
Utility and power distribution system analysis
