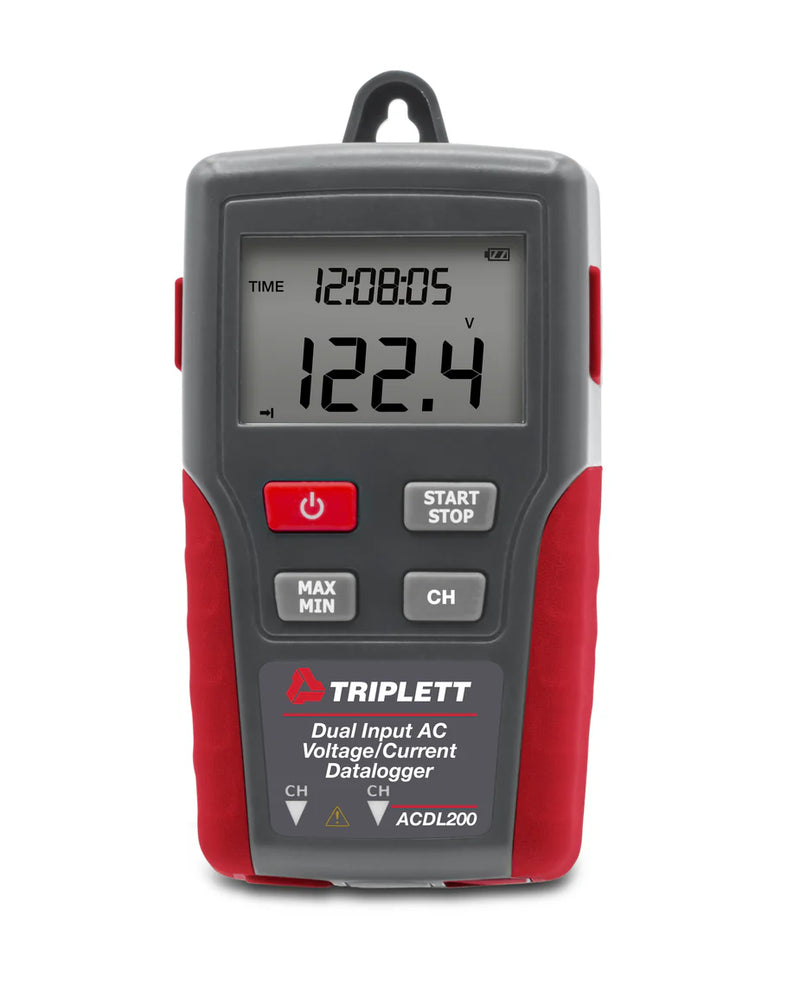

Triplett ACDL200 Dual Input True RMS Datalogger

The Triplett ACDL200 Dual Input True RMS Datalogger is engineered for precise measurement and recording of AC voltage (up to 600V) and AC current (up to 200A). It supports both single and dual input modes, offering dual channel recording of Voltage/Voltage, Current/Current, or Voltage/Current combinations.

With a massive data logging capacity of up to 256,000 measurements (single input) or 131,000 (dual input) and a sampling rate selectable from 1 second to 24 hours, the ACDL200 is designed for professional-grade long-term monitoring.

Its large multifunction LCD display, real-time clock, and Min/Max recall make data tracking simple and efficient. Perfect for electricians, facility maintenance teams, and energy managers who need detailed electrical performance analysis.

Key Features:

Measures AC Voltage up to 600V and AC Current up to 200A

True RMS accuracy for precise readings on non-sinusoidal waveforms

Dual-channel datalogging for voltage/voltage, current/current, or voltage/current combinations

Up to 256,000 data points (single input) or 131,000 (dual input)

Selectable sampling rate (1 second to 24 hours)

Real-time clock with timestamped data logging

Min/Max recording for performance tracking

Multifunction LCD display for easy visualization

Includes test leads, current clamps, AC adapter, USB cable, and batteries

1-year warranty

Applications:

Electrical diagnostics and maintenance

Power consumption and load analysis

Facility management and energy audits

Testing voltage/current stability in machinery

Monitoring power systems and distribution networks
