All-in-one PV system testing solution meeting IEC 62446-1 Category 1 & 2 standards
The Fluke SMFT1000/PRO is a complete, field-ready diagnostic tool designed for solar PV professionals involved in installation, commissioning, operation, and maintenance. This multifunction tester simplifies safety and performance verification so you can identify faults quickly, optimize system output, and ensure long-term reliability.
Complies with IEC 62446-1 Type 1 & Type 2 testing requirements
Open-circuit voltage (VOC) measurement up to 1000 V DC
Short-circuit current (ISC) measurement up to 20 A DC
I-V curve comparison—match on-site results with manufacturer data directly on screen
Protective conductor resistance (RLO) measurement ≥ 200 mA
Insulation resistance (RINS) test at 50 V, 100 V, 250 V, 500 V & 1000 V
Polarity check with visual & audible warning for incorrect connections
Blocking diode (VBD) and surge protection device testing
Measures AC/DC voltage and current through 4 mm test sockets
Rugged, portable design with easy-to-read color display
| Parameter | Range |
|---|---|
| RLO (Display/Measuring) | 0 – 19.99 Ω / 20 – 2000 Ω (0.2 – 2000 Ω Measuring Range) |
| VOC Range | 5 – 1000 V DC |
| ISC Range | 0.2 – 20 A DC |
| RINS Range | 0.2 – 999 MΩ |
| Battery | 6 × AA IEC LR6 |
| Weight | 1.4 kg |

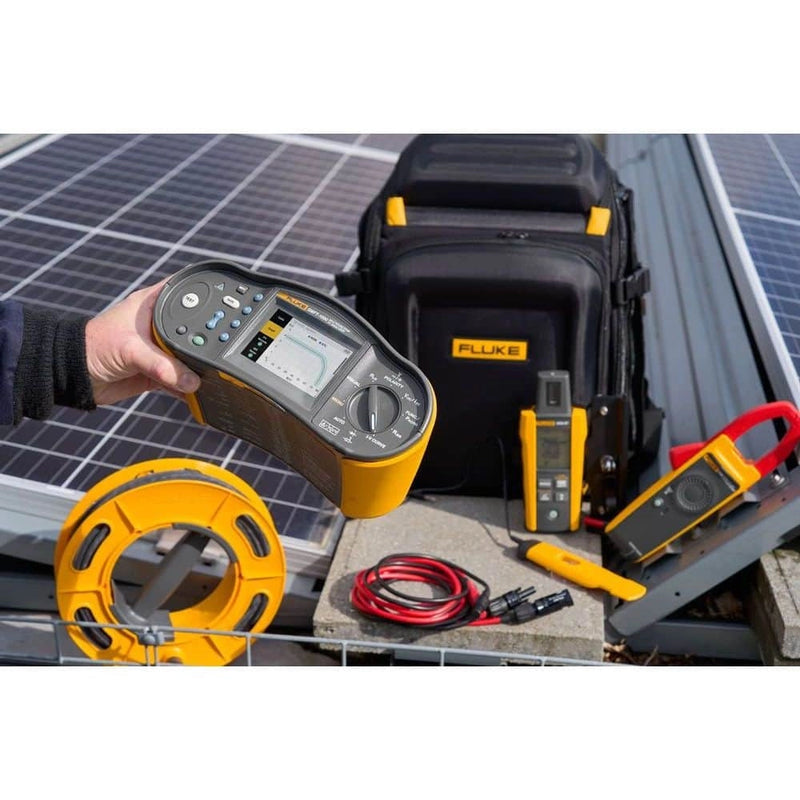

Fluke SMFT-1000 Analyzer with Neck & Waist Carrying Strap
Irradiance Meter (IRR-B2) with Carrying Case
Clamp Meter (i100)
Temperature Probe with Suction Cup
Cable Reel (30 m) and Couple Set
Zero Adapter and IRDA USB Adapter
Magnet & Strap and Remote Probe
Complete Set of Test Leads with Alligator Clips and MC4 Connectors
Soft-Side Backpack with Foam Insert
Fluke TrueTest™ Software (License Included)
Safety Guides and Documentation
PV commissioning and certification
Routine maintenance and fault diagnosis
System performance verification
Safety testing for solar installations
All-in-one PV system testing solution meeting IEC 62446-1 Category 1 & 2 standards
The Fluke SMFT1000/PRO is a complete, field-ready diagnostic tool designed for solar PV professionals involved in installation, commissioning, operation, and maintenance. This multifunction tester simplifies safety and performance verification so you can identify faults quickly, optimize system output, and ensure long-term reliability.
Complies with IEC 62446-1 Type 1 & Type 2 testing requirements
Open-circuit voltage (VOC) measurement up to 1000 V DC
Short-circuit current (ISC) measurement up to 20 A DC
I-V curve comparison—match on-site results with manufacturer data directly on screen
Protective conductor resistance (RLO) measurement ≥ 200 mA
Insulation resistance (RINS) test at 50 V, 100 V, 250 V, 500 V & 1000 V
Polarity check with visual & audible warning for incorrect connections
Blocking diode (VBD) and surge protection device testing
Measures AC/DC voltage and current through 4 mm test sockets
Rugged, portable design with easy-to-read color display
| Parameter | Range |
|---|---|
| RLO (Display/Measuring) | 0 – 19.99 Ω / 20 – 2000 Ω (0.2 – 2000 Ω Measuring Range) |
| VOC Range | 5 – 1000 V DC |
| ISC Range | 0.2 – 20 A DC |
| RINS Range | 0.2 – 999 MΩ |
| Battery | 6 × AA IEC LR6 |
| Weight | 1.4 kg |
Fluke SMFT-1000 Analyzer with Neck & Waist Carrying Strap
Irradiance Meter (IRR-B2) with Carrying Case
Clamp Meter (i100)
Temperature Probe with Suction Cup
Cable Reel (30 m) and Couple Set
Zero Adapter and IRDA USB Adapter
Magnet & Strap and Remote Probe
Complete Set of Test Leads with Alligator Clips and MC4 Connectors
Soft-Side Backpack with Foam Insert
Fluke TrueTest™ Software (License Included)
Safety Guides and Documentation
PV commissioning and certification
Routine maintenance and fault diagnosis
System performance verification
Safety testing for solar installations
