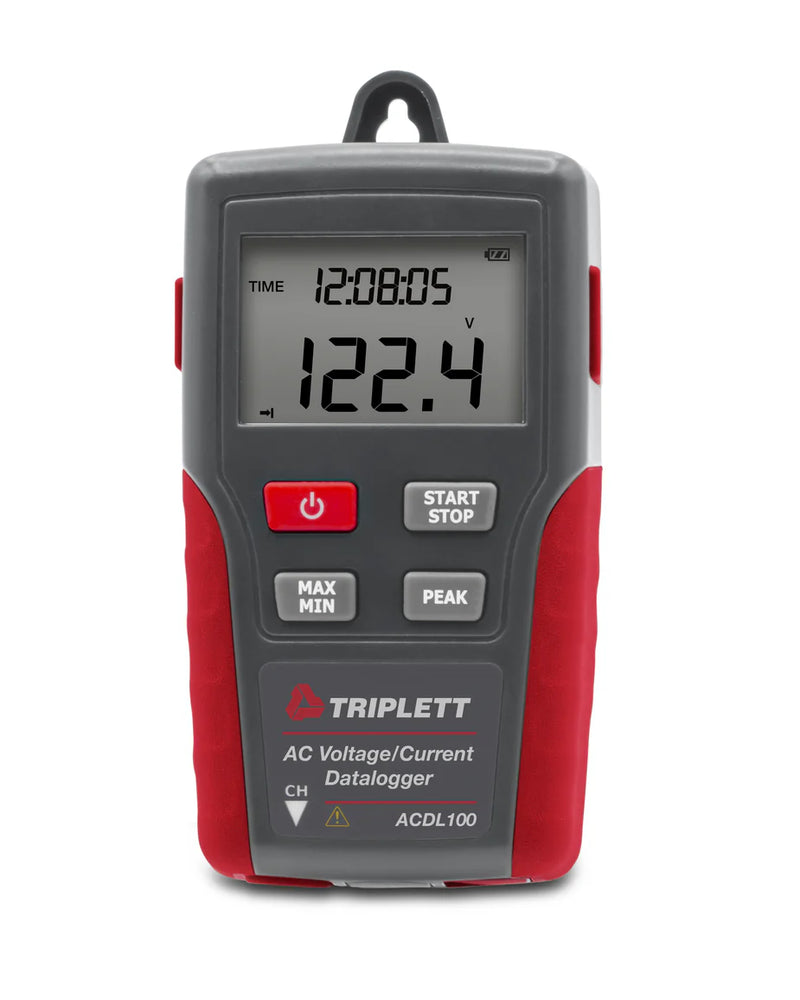

Triplett ACDL100 True RMS Datalogger

The Triplett ACDL100 True RMS Datalogger is a professional-grade single-channel data recorder designed for accurate AC voltage and current monitoring. It can record up to 100,000 measurements, making it perfect for long-term tracking of electrical systems, equipment load, and power consumption.

This compact datalogger provides True RMS accuracy to ensure precise readings even in noisy or distorted waveforms. The multifunction LCD display shows real-time readings, while the real-time clock allows for timestamped logging.

Additional features include Min/Max recall, Peak Hold (average peak measurement), and a selectable sampling rate from 1 second to 24 hours. The included current clamp (0.5" jaw size) and test leads make it ready for immediate use in the field or lab.

Key Features:

Measures AC Voltage (up to 600V) and AC Current (up to 200A)

Single-channel data logging with up to 100,000 recorded points

True RMS accuracy for reliable readings

Selectable sampling interval: 1 second to 24 hours

Peak Hold displays average peak measurement

Min/Max recall captures highest and lowest readings

Real-time clock for timestamped data

Multifunction LCD display for easy monitoring

USB connectivity for data transfer

Includes current clamp, test leads, AC adapter, and batteries

1-year manufacturer warranty

Applications:

Electrical system monitoring and diagnostics

Load testing and performance evaluation

Facility energy audits and maintenance

Predictive maintenance of industrial equipment

Laboratory and educational use
