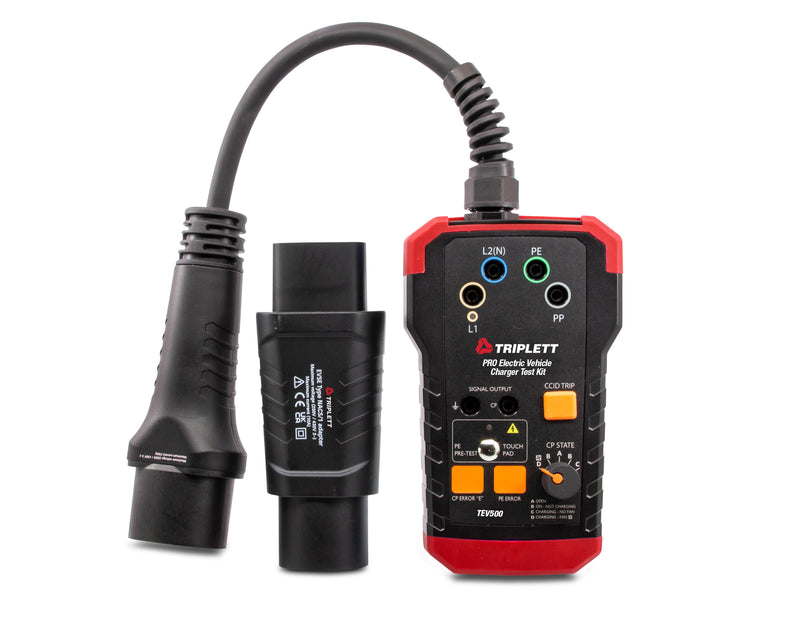

The Triplett TEV500 PRO is an advanced EV charger test kit designed to meet both basic and professional diagnostic requirements for EVSE systems. It enables technicians to perform safety, functionality, and compliance checks quickly and reliably—making it an essential tool for EV charger installation, commissioning, and maintenance.
With built-in PE Pre-Test, the TEV500 PRO checks the PE conductor for dangerous voltages. The CP State rotary switch simulates various vehicle conditions, while CP signal outputs allow oscilloscope connection to verify waveform and amplitude. Advanced error simulations such as CP Error “E” (short circuit CP-PE), PE Error (earth fault), and CCID TRIP testing ensure full safety validation. Direct measurement outputs (L1, L2(N), PE, PP) allow quick voltage checks via multimeter.
Compliant with SAE J1772 North American standards, this kit ensures accurate and standardized testing across a wide range of charging stations.
Tests EV charging stations for basic and advanced diagnostics
PE Pre-Test: detects dangerous voltage on the PE conductor against earth
CP State rotary switch: simulates multiple vehicle states
CP Signal outputs: connect oscilloscope for waveform & amplitude testing
CP Error “E”: simulates CP-PE short circuit condition
PE Error (Earth Fault): simulates interruption of the PE conductor
CCID TRIP Test: ensures proper charging abortion when fault is detected
Phase indicator LED confirms phase voltage on L1 at charging connector
Direct terminal outputs (L1, L2(N), PE, PP) for quick DMM checks
SAE J1772 compliant (North American standards)
Includes IEC62196-2 Type 1 female-to-male adaptor/converter and pouch case
EVSE installation and commissioning
Safety and compliance verification of EV chargers
Advanced diagnostics for charging stations
Fault simulation and oscilloscope testing of CP signals
Routine maintenance for EV service professionals
The Triplett TEV500 PRO is an advanced EV charger test kit designed to meet both basic and professional diagnostic requirements for EVSE systems. It enables technicians to perform safety, functionality, and compliance checks quickly and reliably—making it an essential tool for EV charger installation, commissioning, and maintenance.
With built-in PE Pre-Test, the TEV500 PRO checks the PE conductor for dangerous voltages. The CP State rotary switch simulates various vehicle conditions, while CP signal outputs allow oscilloscope connection to verify waveform and amplitude. Advanced error simulations such as CP Error “E” (short circuit CP-PE), PE Error (earth fault), and CCID TRIP testing ensure full safety validation. Direct measurement outputs (L1, L2(N), PE, PP) allow quick voltage checks via multimeter.
Compliant with SAE J1772 North American standards, this kit ensures accurate and standardized testing across a wide range of charging stations.
Tests EV charging stations for basic and advanced diagnostics
PE Pre-Test: detects dangerous voltage on the PE conductor against earth
CP State rotary switch: simulates multiple vehicle states
CP Signal outputs: connect oscilloscope for waveform & amplitude testing
CP Error “E”: simulates CP-PE short circuit condition
PE Error (Earth Fault): simulates interruption of the PE conductor
CCID TRIP Test: ensures proper charging abortion when fault is detected
Phase indicator LED confirms phase voltage on L1 at charging connector
Direct terminal outputs (L1, L2(N), PE, PP) for quick DMM checks
SAE J1772 compliant (North American standards)
Includes IEC62196-2 Type 1 female-to-male adaptor/converter and pouch case
EVSE installation and commissioning
Safety and compliance verification of EV chargers
Advanced diagnostics for charging stations
Fault simulation and oscilloscope testing of CP signals
Routine maintenance for EV service professionals
